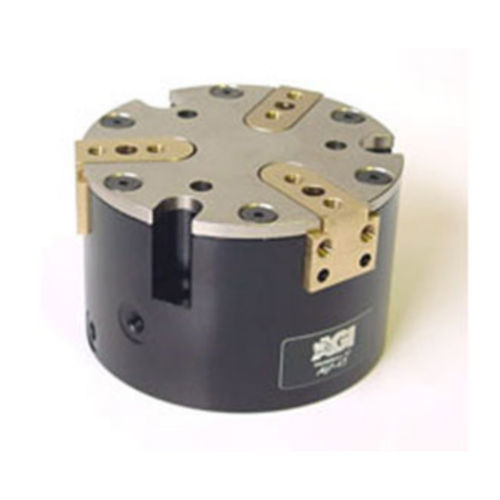

Pneumatic gripper AGP-43

parallel3-jawcompact

Features & Benefits *Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance. *High gripping force to weight ratio *Compact design with long stroke *True parallel jaw motion for easy tooling *Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulations.. *Pistons seals are quad ring type for long service life. *Hall effect sensors are available to monitor open and closed position of the jaws. *AGP is fully field repairable for cost savings and minimum down time Multiple mounting surfaces on jaw for easy tooling. *Optional stripper plate ensures part preload in location upon release. Product Specifications Time: Close: 0.22 sec [0.22 sec] Open: 0.22 sec [0.22 sec] Pressure Range: Low/High 30-120 PSI [2-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 760 lbs 270 lbs [3380 N] [1200 N] Max Compressive C 760 lbs 270 lbs [3380 N] [1200 N] Max Moment Mx 760 in/lb 270 in/lb [85.8 Nm] [30.5 Nm] Max Moment My 760 in/lb 270 in/lb [85.8 Nm] [30.5 Nm] Max Moment Mz 300 in/lb 100 in/lb [34 Nm] [11.2 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 1.0 lbs [5 kg] Piston Diameter: 2.0 in. [50.8 mm]
