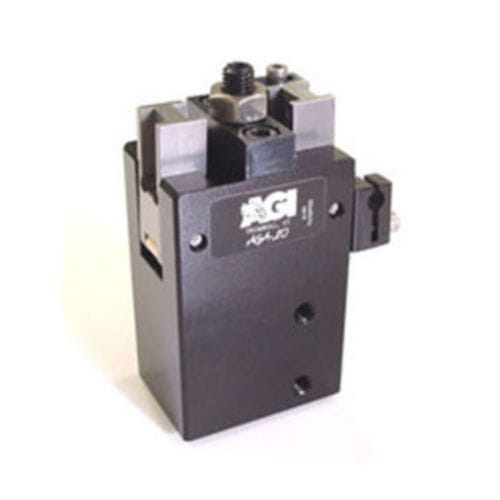

Pneumatic gripper AGA-20

angular2-jawcompact

Features & Benefits *High gripping force to weight ratio. *Grippers provide up to 180 degrees of angular jaw travel allowing the grippers to completely retract from the work area eliminating another required axis of travel. *Compact design with large stroke.. *Jaw Rotations can be adjusted from 0-90 degrees to allow the gripper to be custom fit to each application. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad-ring type for long service life. *The gripper body has two mounting surfaces with dowl pin holes to provide accurate mounting in a variety of positions. *Proximity switches are available to monitor open and closed position of the jaws. *AGA is fully field repairable for cost savings and minimum down time. Product Specifications Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: Low/High 10-120 PSI [.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 50 lbs 20 lbs [222 N] [89 N] Max Compressive C 50 lbs 20 lbs [222 N] [89 N] Max Moment Mx 60 in/lb 20 in/lb [6.8 Nm] [2.3 Nm] Max Moment My 120 in/lb 40 in/lb [13.6 Nm] [4.5Nm] Max Moment Mz 60 in/lb 20 in/lb [6.8 Nm] [2.3 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 7 oz [198 g] Piston Diameter: 0.787 in [20 mm]
