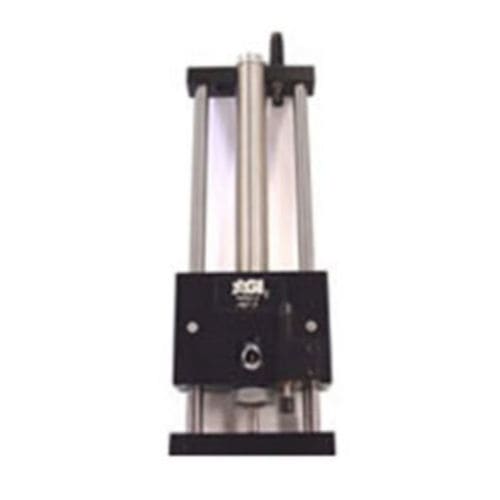

Linear actuator AGT-4

pneumaticaluminumsteel

Features & Benefits *Compact lightweight unit with replacable air cylinder. *Floating piston rod coupling eliminates cylinder binding.. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Optional stroke adjustment for precise, repetitive operation. *Aluminum body and end blocks contain tapped holes and dowel pin holes for precision mounting or fixturing. *Standard end plate to stop shaft vibrations. *Proximity switches are available to monitor end of stroke position of the body. *Optional shock absorbers can be ordered for smooth operation. *Series AGT-4 is fully field repairable for cost savings and minimum down time. Repair kits are available for repairs or maintenance. Product Specifications Recommended Speed: 1-40 in/sec [XX-XX m/sec] Pressure Range: Low/High 20-120 PSI [1.4-8 BAR] Temperature Range: Low/High -20°/150°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Deflection: See Chart Maximum Payload: 25 lbs [11.3 kg] Material: High Strength, Aluminum Alloys, Steel Components Weight: 3.75 lbs + 3 oz/in [1.7 kg + 2.6 g/mm] Shaft Diameter: 1/2 in [12.7 mm] Piston Diameter: 1 1/16 in [27 mm]
