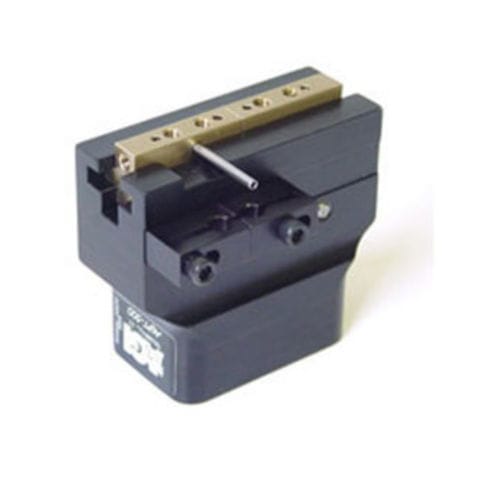

Pneumatic gripper AGPT-500

parallel2-jawcompact

Features & Benefits Jaws are T-Slot bearing supproted to prevent jaw breakage and offer superior load bearing performance. High gripping force to weight ratio. Compact design with long stroke. True parallel jaw motion for easy tooling. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad ring type for long service life. *Proximity switches are available to monitor open and closed position of the jaws. *Series AGLP-500 are fully field repairable for cost savings and minimum down time. *Linkage is guided in the body for precise center repeatibility. Product Specifications Time: Close: 0.12 sec [0.12 sec] Open: 0.12 sec [0.12 sec] Pressure Range: Low/High 10-120 PSI [.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 50 lbs 15 lbs [222 N] [66.7 N] Max Compressive C 50 lbs 15 lbs [222 N] [66.7 N] Max Moment Mx 50 in/lb 12 in/lb [5.6 Nm] [1.3 Nm] Max Moment My 60 in/lb 15 in/lb [6.7 Nm] [1.7 Nm] Max Moment Mz 50 in/lb 12 in/lb [5.6 Nm] [1.3 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 5 oz [142 g] Piston Diameter: 0.625 in [15.8 mm]
