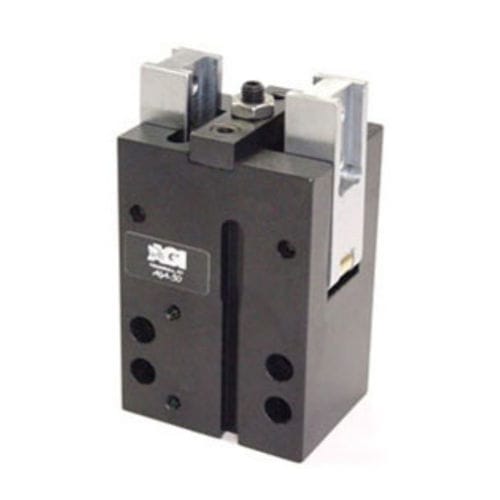

Pneumatic gripper AGA-30

180° angular2-jawcompact

Features & Benefits *Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel. *High gripping force to weight ratio. *Compact design with long stroke. *Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application. *Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulation. *Pistons seals are quad ring type for long service life. *Proximity sensors are available to monitor open and closed position of the jaws. *AGA is fully field repairable for cost savings and minimum down time. *The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions. Product Specifications Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: Low/High 10-120 PSI [.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 60 lbs 30 lbs [266 N] [130 N] Max Compressive C 60 lbs 30 lbs [266 N] [130 N] Max Moment Mx 90 in/lb 30 in/lb [10 Nm] [3.4 Nm] Max Moment My 140 in/lb 35 in/lb [15.8 Nm] [4 Nm] Max Moment Mz 90 in/lb 30 in/lb [10 Nm] [3.4 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 1.5 lbs [.7 kg] Piston Diameter: 1.125 in [28.5 mm]
