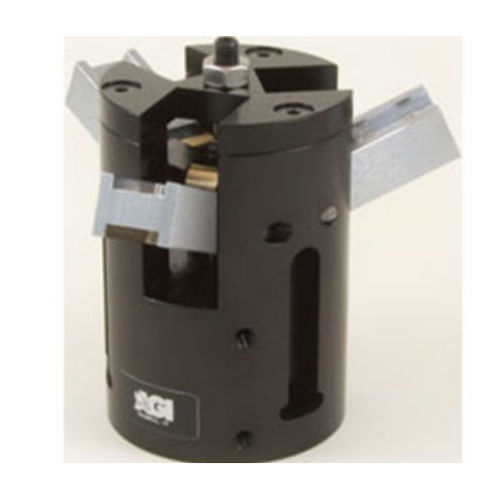

Pneumatic gripper AGA-43

180° angular3-jawcompact

Features & Benefits *Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel. *High gripping force to weight ratio. *Compact design with long, adjustable stroke. *Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application. *Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulation. *Proximity sensors are available to monitor open and closed position of the jaws. *AGA is fully field repairable for cost savings and minimum down time. *The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions. Product Specifications Time: Close: 0.4 sec [0.4 sec] Open: 0.4 sec [0.4 sec] Pressure Range: Low/High 10-120 PSI [.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 90 lbs – 40 lbs [400 N] – [177 N] Max Compressive C 90 lbs – 40 lbs [400 N] – [177 N] Max Moment Mx 150 in/lb – 430 in/lb [17 Nm] – [4.5 Nm] Max Moment My 180 in/lb – 45 in/lb [20.3 Nm] – [5 Nm] Max Moment Mz 150 in/lb – 40 in/lb [17 Nm] – [4.5 Nm] Material: High Strength, Hard Coated aluminum bronze alloys, Steel Weight: 3.25 lb [1.5 kg] Piston Diameter: 1.5 in [38 mm]
