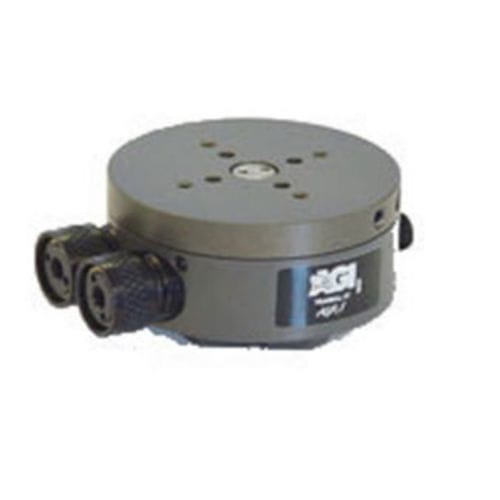

Rotary actuator AGR-1

pneumaticrack-and-pinionaluminum

Features & Benefits *Built-in adjustable hardstops on output flange stop against a dowel pin embedded in the body to prevent pinion breakage and give accurate specific rotation requirements. *Two large bearings, one on either side of the pinion, provide for steady output flange with high loading capacity. *Ultra high torque-to-weight ratio for faster cycle times. *Compact body design to fit in tight space applications. *Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulations. *All rotary units have zero backlash at either end of rotation, keeping the output flange against the hardstop. *Built-in adjustable flow controls allow for maximum cycle times and smooth deceleration. *Proximity switches are available to monitor end of rotation. *The AGR-1 unit is fully field repairable for cost savings and minimum down time. Product Specifications Payload: 1 lb central to axis of rotation [.44 Kg] Rotation Time: No load .1 second Backlash: Zero Accuracy: .001 concentric and perpendicular to axis of rotation Material: High Strength,Hard Coated Aluminum Alloys, Steel Weight: 7 oz [198 g] Piston Diameter: (2x) .5 in [12.7 mm]
