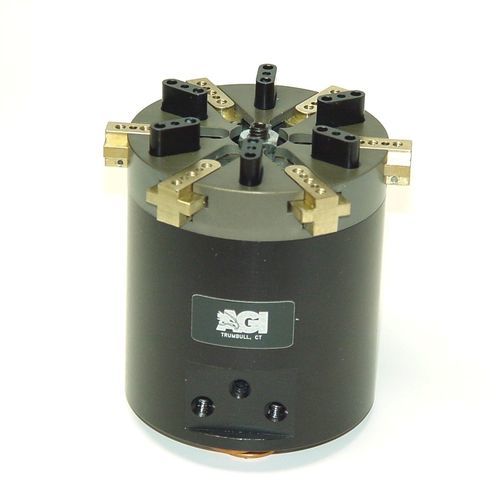

Pneumatic gripper AGP-6-OR

parallel6-jawcompact

Features & Benefits *Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance. *Spreading jaws and Ejector jaws have independent pistons to provide exact timing of o-ring placement. *Compact design with long adjustable stroke. True parallel jaw motion for easy tooling. Product Specifications Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: Low/High 30-100 PSI [2-7 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from center: ± .002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 60 lbs 20 lbs [260 N] [88 N] Max Compressive C 60 lbs 20 lbs [260 N] [88 N] Max Moment Mx 100 in/lb 25 in/lb [11 Nm] [2.7 Nm] Max Moment My 120 in/lb 30 in/lb [13 Nm] [3.3 Nm] Max Moment Mz 100 in/lb 25 in/lb [11 Nm] [2.7 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 1.25 lbs [.56 Kg] Piston Diameter: 1.00 in [25.4 mm] * [ Depending where in the cycle of stroke it is measured. The farther the spread or opening of jaws, the stronger the force. This exponential force {curved} applies to all AGP-OR Grippers. Also, keep in mind these are ‘no’-friction numbers. Every application will entertain a different coefficient of kinetic friction depending on finger design, {height & length}, and should be taken into consideration during design stages of assembly equipment ].
