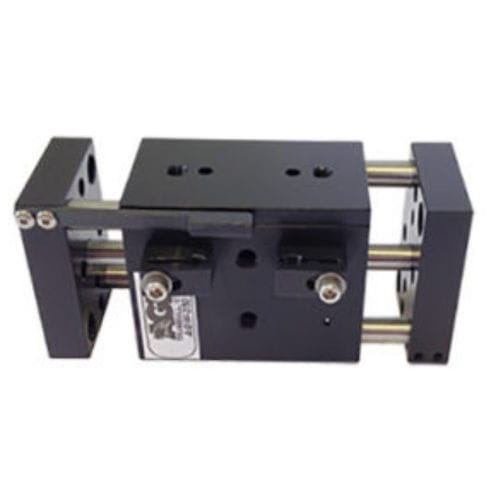

Pneumatic gripper AGW-250-1

parallel2-jawdouble-acting

Features & Benefits *Ultra high gripping force to weight ratio due to four opposing independent pistons that direct power to the jaws. *True parallel jaw motion for easy tooling. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad-ring type for long service life. *Large jaw support shafts are guided through the full width of the main body. *Proximity switches are available to monitor open and closed position of the jaws. *Series AGW-250 is fully field repairable for cost savings and minimum down time. *Non-synchronous versions allow the gripper's jaws to comply to the part's centerline versus the gripper's centerline. Product Specifications Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: Low/High 20-120 PSI [1.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 50 lbs 10 lbs [230 N] [44.5 N] Max Compressive C 50 lbs 10 lbs [230 N] [44.5 N] Max Moment Mx 100 in/lb 20 in/lb [11.3 Nm] [2.3 Nm] Max Moment My 150 in/lb 30 in/lb [17 Nm] [3.4Nm] Max Moment Mz 100 in/lb 20 in/lb [11.3 Nm] [2.3 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 11 oz [311 g] Piston Diameter: .500 in x 4 [12.7 mm]
