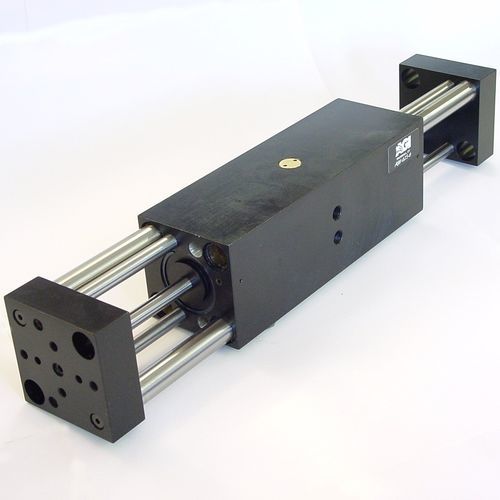

Pneumatic gripper AGW-625-6

parallel2-jawlong-stroke

Features & Benefits *Ultra high gripping force to weight ratio due to four opposing independent pistons that direct power to the jaws. *True parallel jaw motion for easy tooling. *Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulations. *Piston seals are quad ring type for long service life. *Large jaw support shafts are guided through the full width of the main body. *Proximity switches are available to monitor open and closed position of the jaws. *The AGW Series is fully field repairable for cost savings and minimum down time. *Non-synchronous versions allow the gripper’s jaws to comply to the part’s centerline versus the gripper’s centerline. Product Specifications Time: Close: 0.3 sec [0.3 sec] Open: 0.3 sec [0.3 sec] Pressure Range: Low/High 20-120 PSI [1.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 1300 lbs 150 lbs [5700 N] [667 N] Max Compressive C 1300 lbs 150 lbs [5700 N] [667 N] Max Moment Mx 1100 in/lb 120 in/lb [124 Nm] [13.5 Nm] Max Moment My 1500 in/lb 130 in/lb [170 Nm] [14.7Nm] Max Moment Mz 1100 in/lb 120 in/lb [124 Nm] [13.5 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 9.7 lbs [4.4 kg] Piston Diameter: 1.625 in [41.3 mm]
