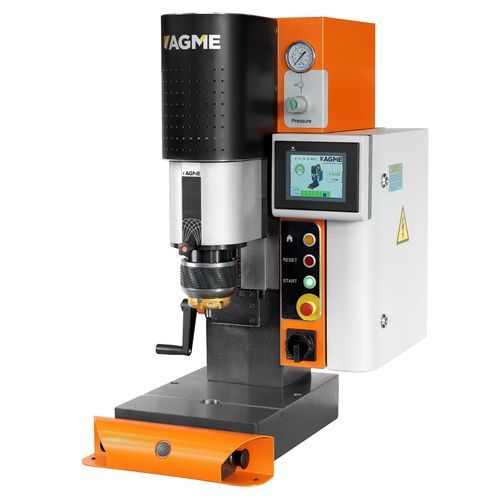

Pneumatic riveting machine AGME RA-12
radialcompactbench-top

pneumatic riveting machine
pneumatic riveting machine
pneumatic riveting machine
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
radial
Other characteristics
automatic, bench-top, compact
Rivet diameter

Max.: 12 mm
(0.5 in)

Min.: 4 mm
(0.2 in)

Description

Fourth generation of AGME riveting machines with many improvements in performance, design and finish. Following our policy of continuous improvement, our RD & I department has obtained considerable advances in durability, reliability and performance over our standard riveting machines. In addition, the new AGME RA riveting machines have also delivered remarkable progress in flexibility. The RA radial riveting machines are highly efficient machines that solve many assembly needs: from the forming of small rivets to riveting large heads with different geometries. With a more current and innovative design, they integrate the following technical advances: New larger electric cabinet with 5” touch screen New more intuitive HMI interface in 9 languages Possibility of program modifications and extensions (PLC) Improvement in the magnetothermics distribution with cable conduits Improved maintenance and accessibility to the electric cabinet interior. Longer life thanks to the increase in load capacity Improvement of the automatic lubrication system Use of lighter materials Frontal access to regulatory systems New electric motors complying with IE3 European standard of energy efficiency New two hand control with a superior design Their modular design provides many possibilities that result in a great versatility and efficiency, as well as an important money saving. Furthermore, our riveting tools, quality assurance systems and other optional accessories make possible the total adaptation of the riveting machines to the industries´ production requirements Our riveting machines are commonly used by the most important automotive components manufacturers in more than 25 countries

VIDEO
