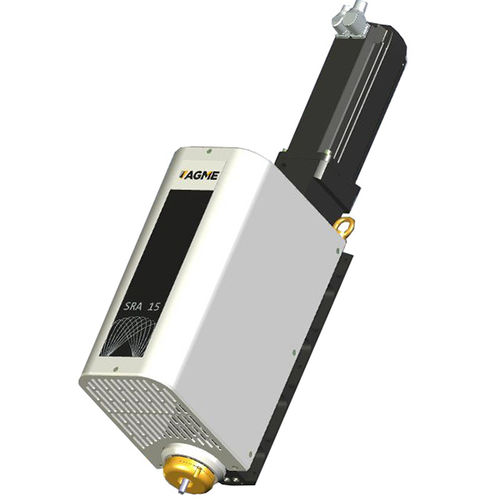

Electric riveting machine SRA-15 UC

orbitalservo

AGME SRA series orbital servo riveting machines are versatile servo riveting heads with maximum capacity due to the application range of between 5 to 23 mm riveted head diameters. They are the ideal solution to process harder rivets or larger diameter versions We have developed the AGME orbital riveting technology in our SRA-15 and SRA-23 orbital servo riveting machines. These riveting units are conceived to be integrated into the special machines that require more flexibility and capacity. When it is necessary to process rivets or parts with very different diameters in the same machine, the AGME SRA series orbital riveting heads are the best option: SRA-15 servo riveting machine to get from 5 to 15 mm final diameter heads in 400 N/mm2 steel SRA-23 servo riveting machine to get from 8 to 23 mm final diameter heads in 400 N/mm2 steel They are the preferred solution when the rivets are hard or when the diameters are large. The SRA riveting head units are prepared to be installed in a vertical or horizontal position in larger machines and they are manufactured in two versions with different performance: SRA-15 UCC / SRA-23 UCC servo riveting unit Intelligent orbital riveting heads with electrical control systems SRA-15 UC / SRA-23 UC servo riveting unit Orbital riveting heads without electric control systems. The clients can use their own in-house control systems. The quality and reliability of AGME orbital servo riveting heads are totally guaranteed. They are designed, developed and manufactured in our premises with AGME technology. This enables us to control all the production phases and supply highest quality.
