- Hydraulics - Pneumatics
- Valve
- Diaphragm valve
- A.G.P. VALVULAS 10 SL

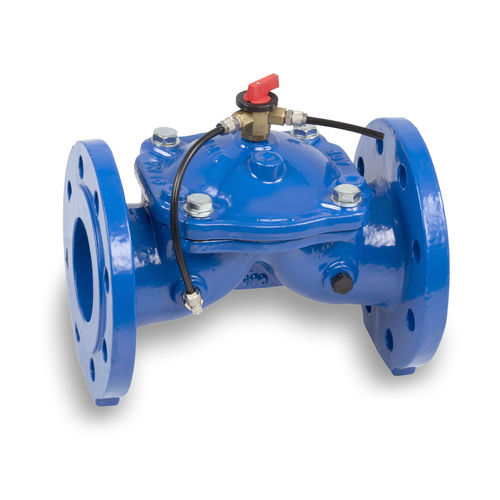

Diaphragm valve 892335+493000manualhydraulicpilot
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual, hydraulic
- Function
- pilot, pressure-reducing, selector
- Body
- flange, metal
- Number of channels
- 3-way
- Other characteristics
- normally closed, normally open
- DN
Min.: 80 mm
(3.15 in)Max.: 300 mm
(11.811 in)- Flow rate
Min.: 20 m³/h
(706.29 ft³/h)Max.: 1,200 m³/h
(42,377.6 ft³/h)
Description
This valve is operated by line pressure by means of a 3 way selector valve, this selector has the positions “open”, “close” and “auto”.
In the “open” position the valve is fully opened, in the “close” position the valve closes slowly to avoid water hammer. “Auto” is used to receive external orders (from solenoid, pressure reducing pilot, etc.).
Applications
The valve opens and closes in response to a local pressure command.
It is possible to connect the vale to a remote pressure command.
