  1. Hydraulics - Pneumatics
  2. Valve
  3. Diaphragm valve
  4. A.G.P. VALVULAS 10 SL

Diaphragm valve 892335+496310
hydraulicfor controlpilot

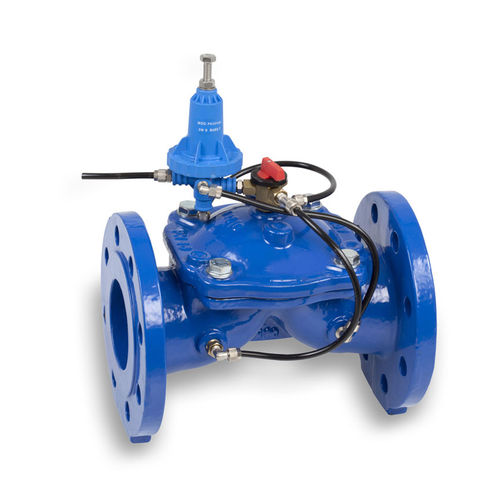

Diaphragm valve - 892335+496310 - A.G.P. VALVULAS 10 SL - hydraulic / for control / pilot
Diaphragm valve - 892335+496310 - A.G.P. VALVULAS 10 SL - hydraulic / for control / pilot
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
hydraulic
Function
for control, pilot, pressure-reducing
Body
flange, plastic
Associated function
reducing, outlet
DN

Min.: 80 mm
(3.15 in)

Max.: 300 mm
(11.811 in)

Flow rate

Min.: 20 m³/h
(706.29 ft³/h)

Max.: 1,200 m³/h
(42,377.6 ft³/h)

Description

Hydraulic control valve used to reduce the inlet pressure to a preset lower level pressure in the outlet by means of a three way plastic reducing pilot incorporated. This valve controls the outlet pressure and maintains it constant without being affected from upstream flow and pressure variations. When upstream pressure value is lower than the downstream preset pressure value, the valve opens completely. Applications Downstream pressure control.
