Diaphragm valve 892335+499310
hydraulicfor controlpilot

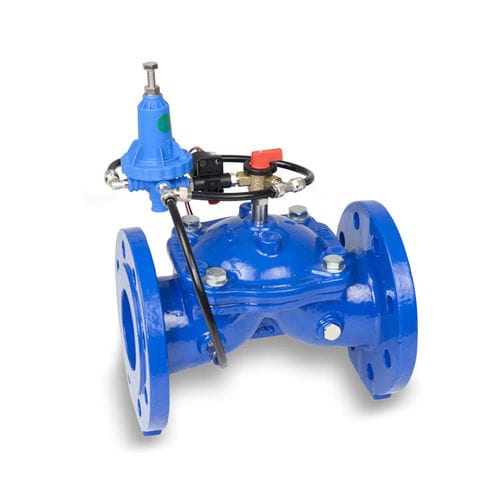

Diaphragm valve - 892335+499310 - A.G.P. VALVULAS 10 SL - hydraulic / for control / pilot
Diaphragm valve - 892335+499310 - A.G.P. VALVULAS 10 SL - hydraulic / for control / pilot
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
hydraulic
Function
for control, pilot, pressure-reducing
Body
flange, plastic
Applications
pump
Number of channels
3-way, 3/2
DN

Min.: 80 mm
(3.15 in)

Max.: 300 mm
(11.811 in)

Flow rate

Min.: 20 m³/h
(706.29 ft³/h)

Max.: 1,200 m³/h
(42,377.6 ft³/h)

Description

Hydraulic control valve used to maintain upstream pressure value constant. When the incorporated 3/2 solenoid receives the order for opening the valve opens only when the inlet pressure reaches a preset level by means of a three way plastic sustaining pilot incorporated. This valve controls the inlet pressure and maintains it above the preset pressure without being affected from upstream flow and pressure variations. When upstream pressure value is lower than the preset pressure value, the valve closes completely. Applications Upstream pressure control. Pump system protection against excessive demand.
