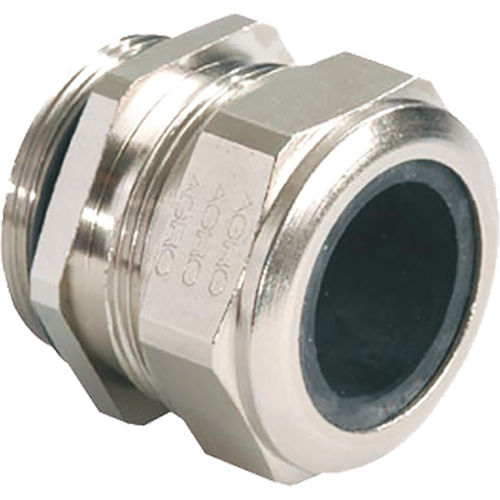

Nickel-plated brass cable gland 1000 seriesIP68IP69strain relief
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- IP68, IP69
- Other characteristics
- threaded, strain relief
- Cable diameter
Max.: 75 mm
(2.95 in)Min.: 16 mm
(0.63 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Two-piece sealing insert
not overall length insulated
Material Nickel-plated brass
Seal TPE
O-ring NBR
Strain relief Version A acc. to EN 62444
Protection class IP 68 (up to 10 bar) / IP 69
Entry thread M20x1.5
Clamping range with insert min. 8.0 mm
Clamping range with insert max. 11.0 mm
Clamping range without insert min. 11.0 mm
Clamping range without insert max. 15.0 mm
Wrench size 24 mm
Dimension H 23 mm
Thread length L 6 mm
UL - clamping range 10.6-11.0 mm
Dispatch 50
