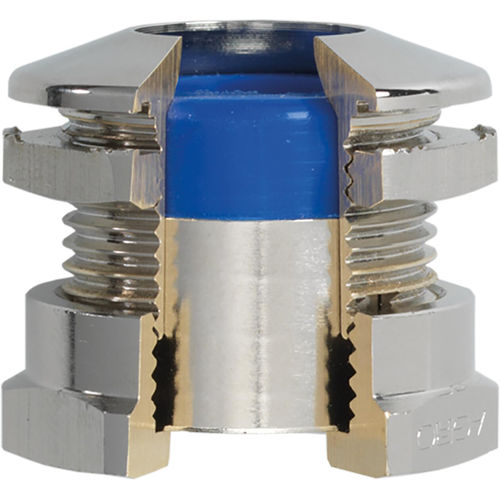

Stainless steel cable gland 1040 seriesnickel-plated brassIP68IP69
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass, stainless steel
- Protection level
- IP68, IP69
- Other characteristics
- threaded, strain relief
- Operating temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description
Cable glands Progress® ultraFLAT stainless steel A2
One-piece sealing insert
not overall length insulated
Front part CrNi stainless steel A2 (DIN EN 1.4305 / AISI 303)
Push-down nut Nickel-plated brass
Seal FKM
Sealing washer FKM
Strain relief Version A acc. to EN 62444
Wall thickness max. 5 mm
Certificate EHEDG
Wrench size 24 mm
Diameter A 27
Dimension H 4.5 mm
Thread length L 23 mm
Note 1
Dispatch 25
