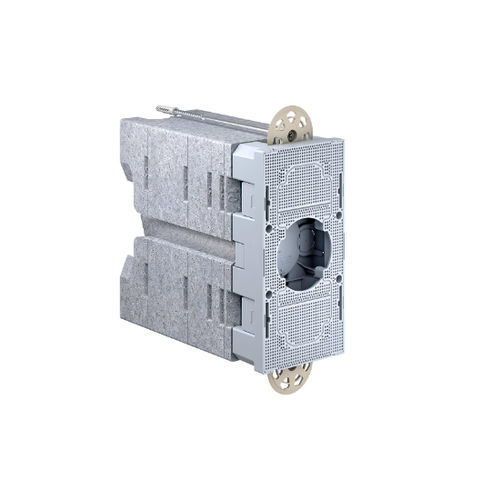

Modular support 9966

Modular support for securely attaching electrical installations in or to heat-insulating external facades. Stable attachment of external lights, sockets, motion detectors, external temperature sensors, radio receivers, anemometers, cameras, letter boxes and much more. compatible with Feller SNAPFIX® Quick fastening with screw-in wall-plug_x000D_ 2 Produkttypen ermöglichen 6 Anwendungen In 10 mm-Schritten an Dämmstärke anpassbar - Zuschneiden entfällt Prevents heat bridges für Dämmstärken von 160 bis 310 mm Can be attached on surfaces made of concrete, bricks, wood, OSB, MDF, gypsum fibreboard etc. Easy disassembly Auslieferstatus Öffnung Ø 73 mm, 1x1 1 Weight-bearing loads – independently of the insulation thickness: For an overhang of 160 mm and insulation thicknesses of 160 - 310 mm; 8 kg without additional screwing of the front plate; 10 kg with additional screwing of the front plate. The system equipment carrier must be fitted vertically. The hole for the dowel must be drilled to make an exact fit. | 2 Increasing the weight-bearing loads: To fix heavier loads, we recommend additional securing of the mounting plate by means of four Ø 3.5 x 25 screws A heat bridge calculation carried out by the Passivhaus Institut in Darmstadt shows that the system equipment carrier has a point-specific heat bridge loss coefficient of xWB < 0,01 W/K and meets the requirements of a heat bridge-free facade.
