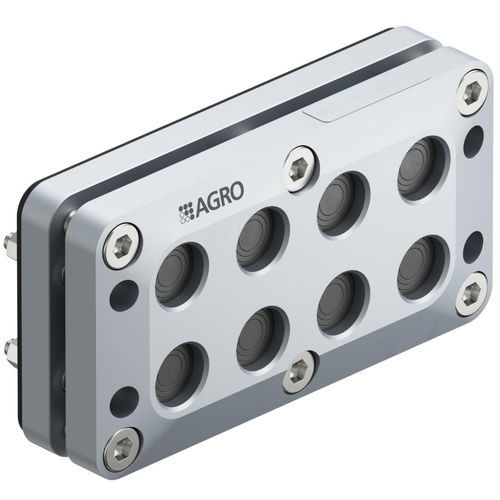

Cable entry system 1908.88.08.010

High tightness IP6X / IPX8 / IPX9K according to EN62444 Absolute process safety Flexibility in the clamping area due to multiLAYER sealing units High pull-out forces according to EN 62444 Fast and cost-saving assembly Extremely robust and flexible No auxiliary materials and lubricants necessary Prefabrication MaterialAluminium anodised SealNBR Flat gasketCR (chloroprene rubber) Operation temperature-30°C / +105°C Strain reliefVersion to EN 62444 Protection classIP 68 = 0.3 bar / 30 min Number of executions8 Clamping range without insert min.4.0 mm Clamping range without insert max.10.0 mm Dimension A148 mm Dimension B79 mm Dimension C26 mm Drillhole distance X130 mm Drillhole distance Y32 mm Fixing boltsM5 Installation opening112x50 mm Dispatch1
