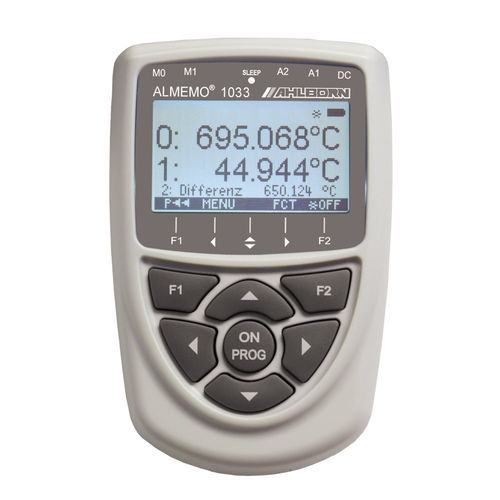

Temperature measuring instrument ALMEMO® 1033-2
Pt100calibrationhigh-precision

temperature measuring instrument
temperature measuring instrument
Add to favorites
Compare this product


Characteristics

Measured value
temperature
Technology
Pt100
Applications
calibration
Other characteristics
high-precision, multi-point

Description

Reference measuring instrument for temperature ALMEMO® 1033-2 •Reference measuring instrument for temperature •High-precision measuring with Pt100 sensors, Resolution 0.001 K •Measuring range up to 720 °C with highest resolution 1 mK Technical data and functions •new: Extended measuring range up to 720 °C with highest resolution 1 mK. •new: Function expansion as standard. The 4 sensor-specific parameters R0 and A, B, C of the •CvD equation (Callendar-van-Dusen equation) for any Pt100 sensor can be programmed by the user. •Temperature measurement with very high resolution, precision, and linearity, using Pt100 sensors •Suitable as reference device in calibration laboratories and quality assurance procedures •Very high accuracy thanks to multi-point adjustment of the Pt100 temperature sensor •2 electrically isolated measuring inputs for Pt100 sensors •Resolution : 0.001 K, Units : °C, °F, K •High-resolution A/D converter, delta-sigma, 24-bit, 1.25 mops (measuring operations per second) •Two output sockets for digital interface, ALMEMO® memory connector •Compact, modern, ergonomic design •Graphics display, illuminated with white light •Easy and convenient to operate by means of 4 soft-keys and cursor block •Measured value display 2 measured values and differential •Measuring functions: Zero-setting, smoothing, maximum / minimum values, individual value memory for 100 values •Data logger with ALMEMO® memory connector (accessory) •Sensor programming: Smoothing, designation, units, resolution, multi-point adjustment •Device configuration: Illumination, contrast, device address, baud rate
