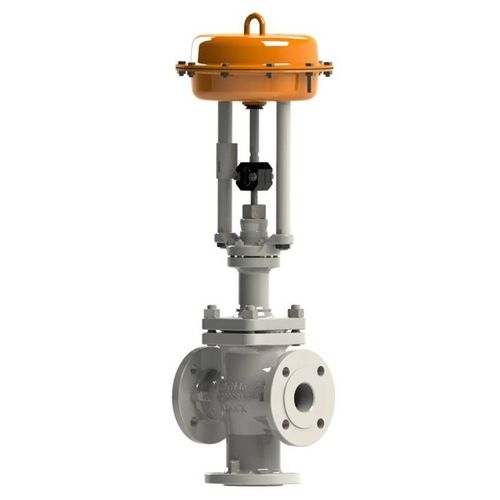

Mixing valve V5066

diaphragmpneumaticelectric

Three-way valves for heat transfer oil systems The control valves of the V5066 series by A. Hock are extremely versatile and of top quality. The three-way valves are available in diverting and mixing versions. They are primarily used in heat transfer oil systems. The three-way valves can be actuated by a pneumatic diaphragm actuator of the 2000 series or by the Honeywell MP953. In addition, the electric actuators of the E2000 series by A. Hock ensure a controlled operation. Application areas The three-way control valves of the V5066 series are available as mixing (V5066B) and diverting (V5066A) versions. In heat-transfer systems, production processes are heated or cooled indirectly with the help of heat transfer oil. Mineral oils, glycerine and similar media are used as heat carriers. Because toxic substances can be released at high temperatures, the V5066 series comes with a bellows seal. Features and advantages assembly and accessories according to customer needs and wishes convertible from diverting version to mixing version bellows seal with safety stuffing box same installations lengths as series 2003, 2013, 603, 613 and Honeywell V5050A/V5050B
