Flexion tester

fatigue-resistancefor fabricfor rubber

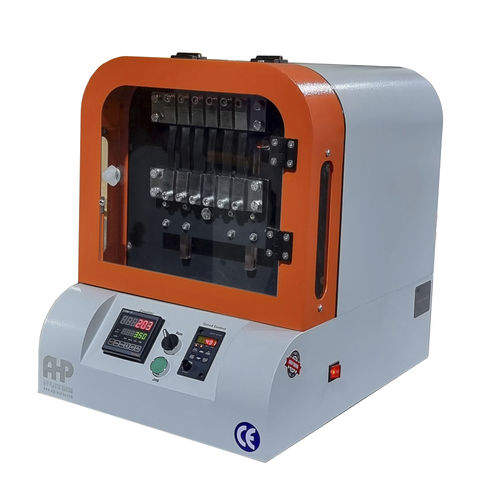

DeMattia Flex-cracking Tester, to determine the resistance of rubbers, leather, and coated fabrics to the formation and growth of cracks, and damages by repeated flexing. Clamp the specimen in grip and flex it constantly, then observe the cracking degree to realize or compare its flex-endurance after flexibility fatigued. What is the flexing resistance test? Flexing resistance refers to the degradation or even destruction of the physical properties of a material or product under repeated flexing action. In flexing testing of rubber and coated fabrics, flexing resistance is usually expressed in terms of the number of times a specimen has been subjected to repeated flexing and the degree of surface cracking. Test standards for flexing resistance of rubber and coated fabrics ISO 7854: Rubber or plastics coated fabrics – Determination of resistance to damage by flexing GB/T 12586: Rubber or plastics coated fabrics – Determination the flexing resistance to damage Specifications According to EN ISO 7854 Method A, ISO 7854 Method A, GB/T 12586 Method A 6 stations Grip distance in open position 70 mm Grip distance in close position 13mm Stroke length 57 mm Test frequency 300 cpm Digital counter included
