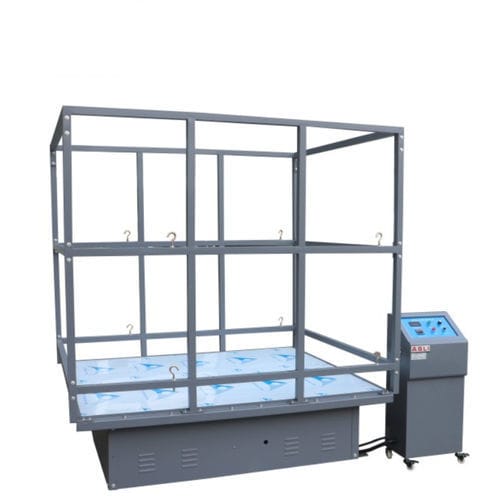

Vibration tester AS-200

for electrical appliancesfor packagingfor electrical equipment

Simulating Transport Vibration Tester is based on the United States and European transport standards,and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels. Main Features: 1.Digital instrument display vibration frequency; 2.Synchronous belt transmission mute, very low noise; 3.Test items using clamping rail type, easy to operate, safe; 4.Machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw; 5.DC motor speed control, running smoothly, load capability; rotary vibration
