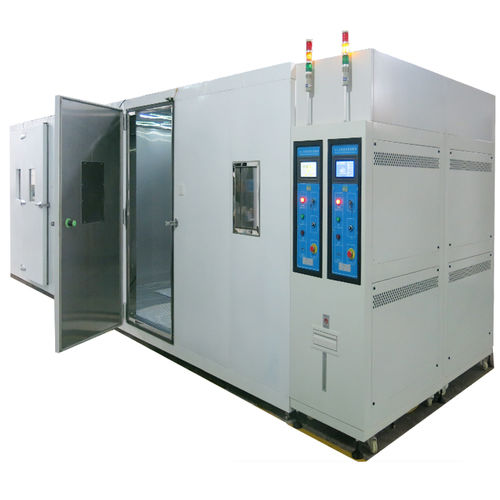

Thermostatic test chamber

temperaturedehydratingwalk-in

1 Product Name 1-1 Product Name: walk-in temperature test room 2 Main Technical Parameters 2-1 Dimension: According to customer's requirements 2-2 Material : SUS#304ss 2-4 Temperature Indication Resolution: ±0.1°C 2-5 Temperature Control Accuracy: ±0.5°C 2-6 Temperature distribution uniformity:±2°C 2-6 Humidity: 20%~98%R.H (according to customer's requirements) 2-7 Humidity Indication Resolution: ±0.1%R.H 2-8 Humidity distribution uniformity: ± 5.0%R.H 3 Air Supply Systems for Welded / Modular Climatic Walk in Chamber/Climatic Chamber Room 3-1 Air Cycling Device: centrifugal fan, externally installed motor drive 3-2 Heating Mode: wire heaters made of a material called Nichrome; PID & SSR control 3-3 Cooling Mode: air/ water cooling 3-4 Humidification Mode: Stainless steel steam humidification; water purifier is provided for automatic water supply while being connected to the chamber 3-5 Dehumidification Mode: by compressor& de-humidify device 4. walk-in temperature room constant humidity & temperature chamber construction 4-1 Console Model Chamber: 4-1-1 The workspace is located at the left side or as to the user requirements; 4-1-2 Refrigeration unit cabinet located in the right side; 4-1-3 Electric control part is placed in the refrigeration unit cabinet, with operation panel on the front Chamber exterior is made of cold rolled steel with powder-painted, interior is stainless steel SUS304 #; 4-1-4 Thermal insulation material is flame retardant polyurethane rigid foam, of 100-150mm thickness.
