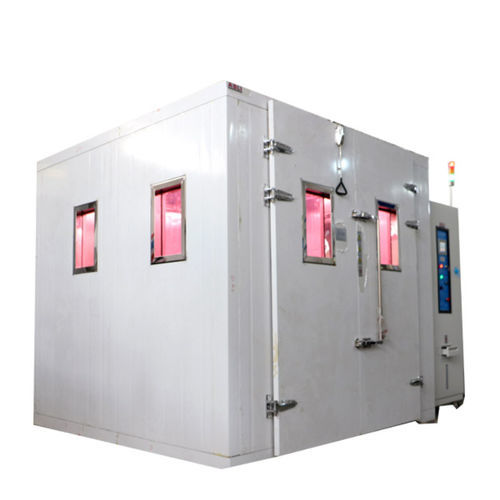

Climate chamber MQT 10

humiditytemperatureradiation

One of the significant factor to snail trails is the composition of EVA. EVA with suitable substance could resist snail trails. Products of some EVA suppliers have been proved to work well. Backsheet is not the key contributor to snail trails. Snail trails will always appear with or without backsheet. Narrow cracks, or microcracks, are also a key factor. They prevent the moisture from evaporating out of the module, hence effectively preventing the humidity inside PV module from dropping. It is easier to create snail trails under such condition. Compared with regular Damp Heat test, UV+DH test condition plus specially designed evaluation samples could generate faster results. It is proven that it will shorten the testing time by 50%. Meet the UV preconditioning test requirements specified in the 4.10 clause of the IEC 61215-2016 standard and the standard MST54 of the IEC 61730-2016 standard. Specially designed UV metal halide lamps are used to test of photovoltaic products and materials. 1. Temperature of lamp could be by cooled down in closed chamber which is cooled by water cooling chiller . 2. Module temperature could be controlled by water cooling chiller with cooling air blowing the module. 5. During the test, the UV irradiance data can be tracked. After the irradiation reaches the requirement, the test can be stopped automatically. 6. With the power off memorizing function, which could accumulate on the data before power off. 7. Real-time curves of UVA & UVB radiation, temperature of module could be showed on the display and history curves could be accessed.
