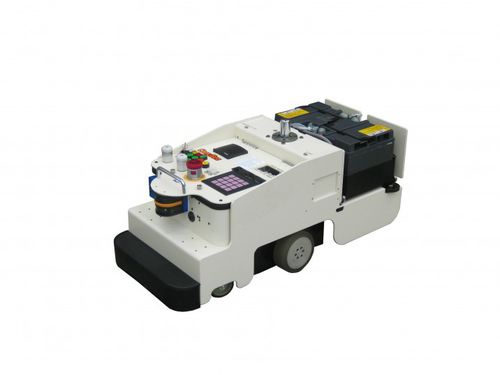

Warehouse AGV

electric

Compact Short type It can slide under a cart, connect and detach it automatically Programmable / No Programmable - Programmable (Count Up) Transportable Weight - 300kg (Forward), 600kg (Forward and Reverse) Guidance Method - Magnetic, 〈Optical〉,〈Optical&Magnetic〉 Drive Method - Forward: 2WD, Forward and Reverse: 4WD Driving Speed - Max. about 50m/min Length x Width x Height - Forward: 820×350×350, Forward and Reverse: 1400×350×350 (mm) Minimum Turning Radius - Forward: R350, Forward and Reverse: R800 (mm) Continuous Operation Hours - 8hrs (depending on operation rate and battery size) Performance・Function - Running functions 　・Setting speed: 10 speeds Control function 　・200 programs, 200 steps, operation mode (Straight running, Right turn, Left turn, Stop, Speed change, Obstacle sensor changeover, etc.), 〈200 patterns of operation mode are available〉, 〈Intersection Entry Priority〉, 〈Wireless running route control〉, 〈Start by remote controller〉 Safety functions 　・Overload detection, Obstacle detection (Detection area changeable), Emergency stop switch, Buzzer alarm for abnormalities, Signal tower, Bumper sensor, Melody unit Others 　・Drive wheel free structure in manual operation, 〈Electrical powered pin hook
