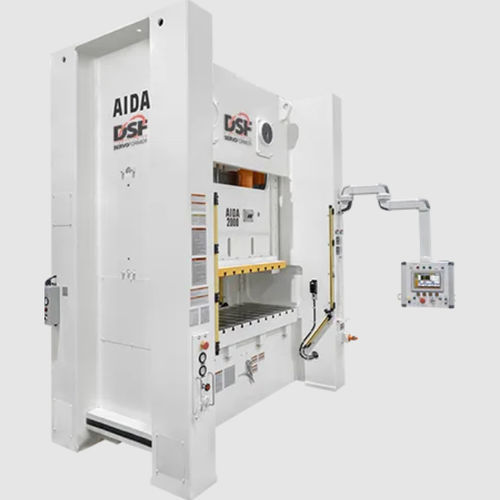

Pneumatic press DSF-N2-AB

stampingframedirect-drive

AIDA direct drive servo motor High torque, low RPM servo motor built specifically for metal stamping press applications Pneumatic safety brake Integrated with GuardLogix safety controller to engage when safety device is activated, providing additional redundant layer of safety AIDA/Allen-Bradley servo control system AIDA's exclusive partnership with Allen-Bradley, featuring CompactLogix PLC, GuardLogix control, & Common Industrial Protocol (CIP) safe technology Allen-Bradley servo drives PowerFlex drives with CIP motion for optimum performance Energy Conservation & Optimization (E.C.O.) servo press power management system Robust capacitor system for optimized energy management NEMA 13 rated enclosures Floor-standing cabinets allow easy access with flexible placement options available, and NEMA 13 rating ensures contaminant free operation Recirculating oil lubrication system Provides clean oil in metered amounts to all bearing points AIDA hydraulic overload protection HOLP Fastest acting HOLP in the industry (10ms), adjustable from 60-100% of rated press tonnage Proven mechanical drivetrain Design allows AIDA to use same drivetrain as mechanical equivalent Allen-Bradley based HMI Swing-arm mounted, 12" color touch screen 8 Input die protection Both PNP/NPN signals, expandable to 16 (DSI box optional) Tonnage monitor Optional integrated tonnage monitor, peak and reverse load or signature analysis Full-length, 6-point slide guides Easily set to maintain slide to bolster parallelism of less than .001"/ft Light curtains Front and rear mounted, vertical & horizontal light curtains to protect operators from the die space during operation
