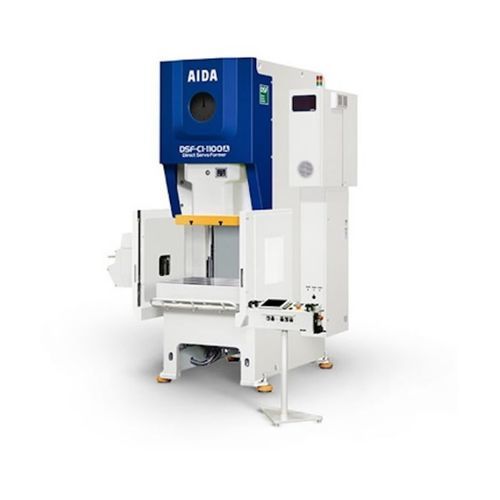

Motorized press DSF-C1 seriesmechanicalstampingC-frame
Add to favorites
Compare this product
Characteristics
- Operation
- motorized, mechanical
- Function
- stamping
- Structure
- C-frame, frame
- Control
- CNC
- Other characteristics
- servo-driven, electronic, direct-drive
- Force
800 kN, 1,100 kN, 1,500 kN, 2,000 kN, 2,500 kN
- Opening
320 mm, 350 mm, 400 mm, 450 mm, 540 mm
(13 in, 14 in, 16 in, 18 in, 21 in)- Stroke
160 mm, 180 mm, 200 mm, 250 mm, 300 mm
(6.299 in, 7.087 in, 7.874 in, 9.843 in, 11.811 in)- Max. pressure
1 MPa
- Hydraulic pump power
38 kW, 40 kW, 55 kW, 120 kW
- Overall height
2,730 mm, 2,960 mm, 3,185 mm, 3,700 mm, 4,400 mm
(107 in, 117 in, 125 in, 146 in, 173 in)
Description
Same Mechanical Drive Train of the tried and true NC1 Mechanical Gap Frame
Exclusive AIDA / Allen-Bradley Servo Press Controls
ECO Power Management System
AIDA DSF Direct Drive Servo Motor

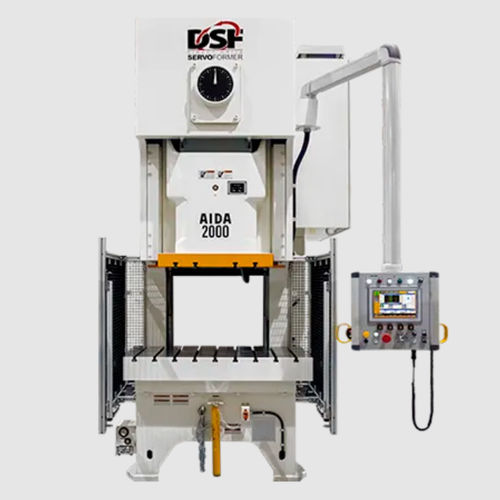

The AIDA DSF-C1 Direct Drive Gap Frame Servo Press marries the successful mechanical design of the NC1 Series Mechanical Gap Frame with AIDA's DSF Direct Drive Servo. This combines the flexibility of open die space area with the flexibility of the freely programmable servo motion.
PRESS FEATURES
Next Generation AIDA Direct Drive Servo Motor
Swing Arm Mounted Allen-Bradley Based HMI
Hard Guarding and Light Curtains
8 Input Die Protection (DSI Box Optional)
E.C.O. Servo Press Energy Management System
Allen-Bradley PowerFlex Drives
AIDA Electronic Overload Protection System
AIDA / Allen-Bradley Servo Control System
Integrated Tonnage Monitor
SERVO PRESS CONTROL FEATURES
AIDA / Allen-Bradley Servo Press Control
12" HMI
CNC Handwheel Control
Handheld Type
E.C.O. System
Energy Conservation & Optimization
Programmable Slide Motions
Complete Control of Position, Velocity, Dwell & Beyond
Optimized servo press slide motion profiles maximize metal stamping productivity and improve part quality.
