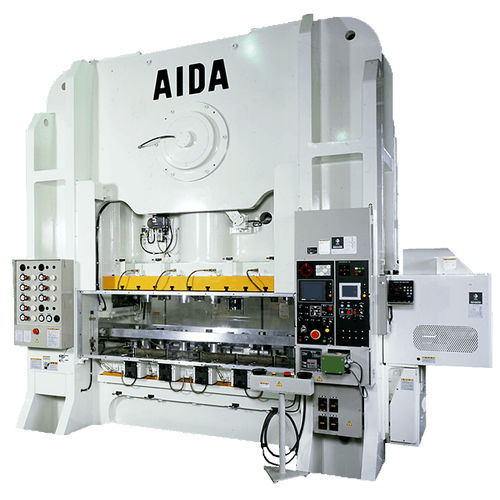

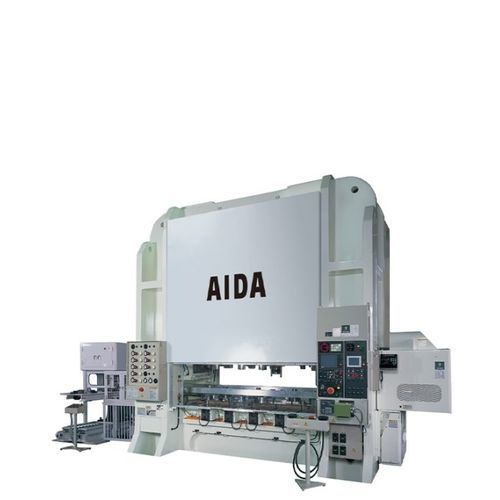

Mechanical press ULX series

stampingstraight-sidedouble

A PRESS THAT IS MORE ACCURATE THAN THE DIE Single-point, center-suspension, no con rod design Ideal for progressive, transfer and near fine blanking Eight zero-clearance spherical shoe type gibs High off-center loading Revolutionary 9-point support system High dynamic accuracy widens the versatility of forming processes Compact design of press results in lower overall height Mechanical Press Structure 1. - Double Ring Plate Design 2. - 9-Point Ultimate Slide Guide System 3. - Con-Rod-Less, Scotch Yoke Drive Mechanism 4. - Eccentric Shaft 5. - Single-Point, Very Small Dies with Full Tonnage 6. - Highly Rigid Frame Zero-Clearance System Provide Superior Parallelism Guide System based on innovative (8) spherical shoes riding on Teflon liners with ultra-high pressure oil film lubrication More about 9-Point Slide Guide System Eccentric Shaft Drivephoto of eccentric shaft Ideal for Short Stroke Precision Stamping Operations Eccentric shafts are used primarily in high speed and progressive die stamping operations. Allows for placement of bearing supports against both sides of the eccentrics.
