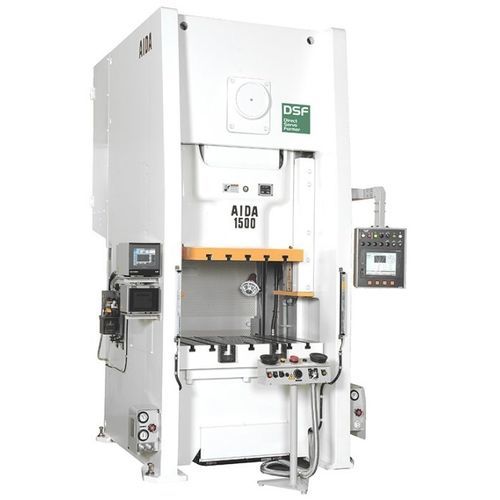

Motorized press DSF-N1 series
mechanicaldrawingcutting

motorized press
motorized press
motorized press
motorized press
motorized press
motorized press
motorized press
Add to favorites
Compare this product


Characteristics

Operation
motorized, mechanical
Function
drawing, cutting
Structure
frame
Control
CNC
Other characteristics
servo-driven
Force

800 kN, 1,100 kN, 1,500 kN, 2,000 kN, 3,000 kN

Opening

320 mm, 350 mm, 400 mm, 450 mm, 550 mm
(13 in, 14 in, 16 in, 18 in, 22 in)

Stroke

160 mm, 180 mm, 200 mm, 300 mm
(6.299 in, 7.087 in, 7.874 in, 11.811 in)

Overall height

2,965 mm, 3,040 mm, 3,300 mm, 3,795 mm, 4,745 mm
(117 in, 120 in, 130 in, 149 in, 187 in)

Description

SINGLE POINT UNITIZED FRAME PRESS EQUIPPED WITH DSF DIRECT DRIVE SERVO Same Mechanical Drive Train of the tried and true NS1 Mechanical Press AIDA HOLP ECO Power Management System AIDA DSF Direct Drive Servo Motor The AIDA DSF-N1 Direct Drive Unitized Frame Servo Press marries the successful mechanical design of the NS1 Series Mechanical Unitized Frame press with AIDA's DSF Direct Drive Servo. This combines the rigidity of a unitized frame with the flexibility of the freely programmable servo motion. PRESS FEATURES E.C.O. Servo Press Energy Management System AIDA Servo Motor Hardened & ground pinion and ground main gear 6-Point Slide Guide System Hydraulic Overload Protection System (HOLP) Recirculating Oil Lubrication System SERVO PRESS CONTROL FEATURES Mitsubishi Controls Servo Press Control Platform Provides full functionality at an affordable price. Mitsubishi PLC with AIDA motion controller for precise control of your servo press. CNC Handwheel Control T-Stand Mounted Type Precise control of your servo press at your fingertips. The answer to die set-up and try-out operations. Step Feed Mode, controlled by the handwheel, allows press operators to cycle the press at below 1 spm. Energy Conservation & Optimization The most efficient servo press energy management system available. The AIDA system stores energy in long life capacitor system (rated over 20 years) to optimize energy consumption. Programmable Slide Motions Complete Control of Position, Velocity, Dwell & Beyond Optimized servo press slide motion profiles maximize metal stamping productivity and improve part quality.

VIDEO
