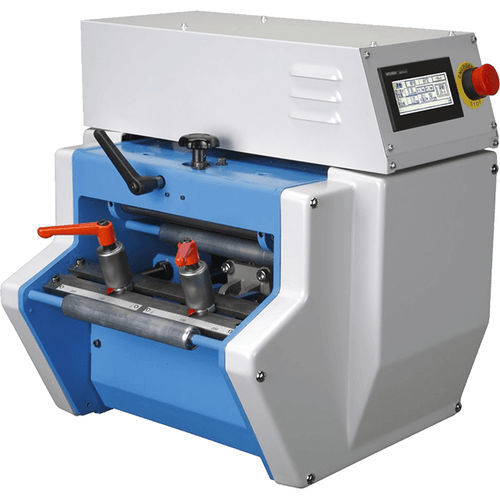

Stamping press roller feeder F series

TOTAL INTEGRATION WITH THE PRESS FOR A HIGH PERFORMANCE LINE The AIDA F-III NC Roll Feeder offers superior functionality and features such as an integrated and easy to use control screen, an optimized compact design, and hard chrome-plated rolls. The F-III can process material .03 mm - 3.2 mm thick and 30 mm - 400 mm wide, and can reach 200 spm number of feeds per minute (when using advance angle with an air release). Available in both left to right and right to left (option) configurations, the AIDA F-III NC Roll Feeder maintains a feed accuracy of ±0.1 or less (repeatable accuracy). Features Easy operation via the touchscreen A compact design with a built-in control panel Hard chrome-plated feed rolls A material end detection device is standard Two selectable feed angles (180° and 240°) Press spm auto-calculation display function Release length setting function Responsiveness up to 200 spm (when using the advance angle function)
