Air filter AR-PF

panelpressurefor air conditioning

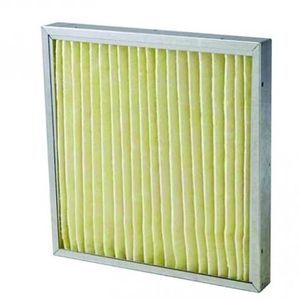

Glass Fiber Flat Panel cardboard frame G3 G4 air condition Glass Fiber Medical Flat Air Filter​ description: Applications: coarse particle filtration Frame: cardboard or galvanized steel Grids: aluminium mesh or galvanized steel mesh Average arrestance: 84%－94%(ASHRAE 52.1-1992) DIN 53438 Flammability:F1 Final pressure drop: (recommender) 200Pa -(maximum)250Pa Max. air flow rate: 125% of nominal air flow rate Max. operating temperature: 100℃ Max. relative humidity: 100% Type: flat panel filter Filter media: glass fiber mat EN 779 Class: G3－G4 MERV: MERV 5－8(ASHRAE 52.2-1999) UL 900 Standard: CLASS 2 Glass fiber filament material produced by TianHao Company learns from foreign advanced technology. BV type glass fiber plate filter made of this material has features of high temperature resistance, high efficiency, low resistance, light weight, sound deadening and anti-corrosion. It overthrows traditional glass spun silk's shortness of easy hair removal and dust leakage. Filter material can be made into panel type and pleat type. It's the ideal filter for modern hot-air drying room and high temperature environment. It also can be used as ventilation filter of painting equipment which can efficiently intercept mist and realize environmental production Air conditional filters Advantages l Suitable for high humidity conditions l Replaceable filter media l Progressively built-up thermal bonded polyester fibre
