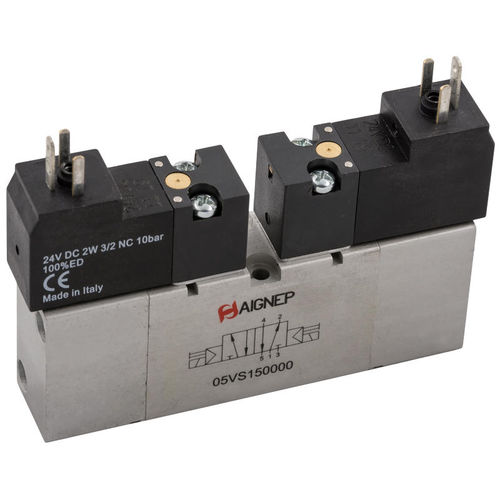

Spool pneumatic directional control valve 05VS series
solenoid-operated5/2-way5/3-way

spool pneumatic directional control valve
spool pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
solenoid-operated
Ports/positions
5/2-way, 5/3-way
Other characteristics
aluminum
Operating pressure

Max.: 10 bar
(145 psi)

Min.: 1 bar
(15 psi)

Flow rate

550 l/min
(145 us gal/min)

Description

The Aignep 05VS is an array of Pilot-operated solenoid valves that are constructed in an Anodized aluminium body with nickel-plated spool as well as NBR mechanical seals. These valves exhibit an operating pressure of 2.5 up to 10bar for monostable and 1 up to 10bar for bistable. Furthermore, it can operate in a thermal range of -10°C up to +60°C.
