Food industry fitting 70040 serieshydraulicfor compressed airfor vacuum
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic, for compressed air, for vacuum
- Attachment
- push-in
- Material
- silicone-free, nickel-plated brass
- Other characteristics
- for the food industry
- Diameter
4 mm, 6 mm, 8 mm, 10 mm, 12 mm
(0.157 in, 0.236 in, 0.315 in, 0.394 in, 0.472 in)- Operating pressure
Min.: -0.99 bar
(-14.36 psi)Max.: 20 bar
(290.08 psi)
Description

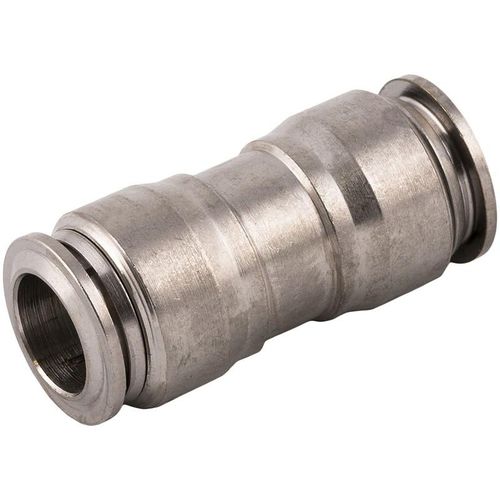

STRAIGHT CONNECTOR
The 70.000 serie is NSF 169 certified to comply the food norm 1935/2004/CE & Italian DM 174.
The line is in brass with Food Grade coating.
In combination with our FEP tubes is the most demanded solution for the Food & Beverage market.
Thanks to the special coating it can be used also in agressive enviroment.
Main advantages
- NSF 169, 1935/2004/CE, DM 174
- Quick connection and disconnection
- Full Flow and Vacuum resistant tank to special shaped seals
- Thread BSPP & Metric
- Large range to comply food norms
