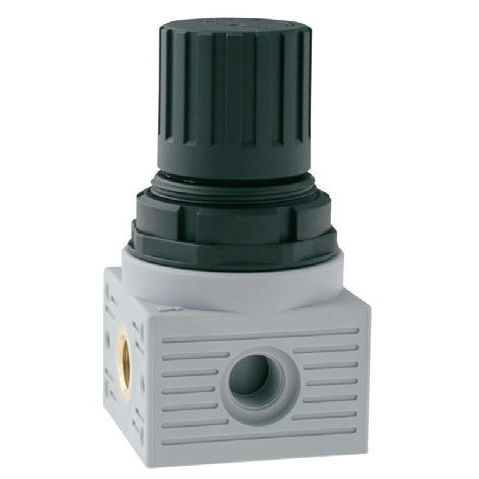

Compressed air pressure regulator T020-MINI membranesingle-stagemetal
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- metal, technopolymer
- Applications
- industrial
- Other characteristics
- miniature, vertical
- Pressure
Max.: 12 bar
(174.05 psi)Min.: 0 bar
(0 psi)- Flow
600 l/min
(158.5 us gal/min)- Orifice diameter
0.13 in, 0.25 in
- Temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)
Description
The Air Preparation Units of Aignep are necessary for a perfect conditiong of compressed air.
Filters “F”, Regulators “R” and Lubricators “L” are available in 4 sizes according to the flow and various combinations.
Size 0 “Mini” in 1/8-1/4 is constructed from high resistance & light technopolymers.
Sizes 1-2-3 is constructed from robust metal body and technopolymeric bowl form 1/8 to 1”.
Fixing accessories to complete.
On demand FDA Filters
Main advantages
- Modularity
- Sharp and reliable regulation
- High Flow
- Robust with light weight
- Coalescing Filters
- Silicon Free
