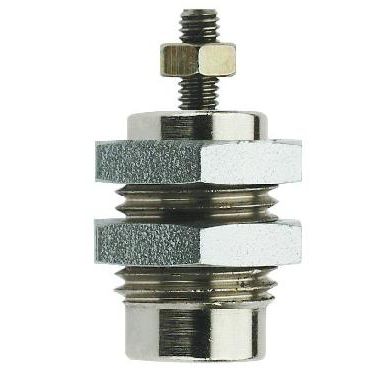

Cartridge cylinder CAF seriespneumaticwith threaded rodssingle-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- with threaded rods
- Configuration
- single-acting
- Material
- steel, brass
- Other characteristics
- threaded, cartridge
- Stroke
5 mm, 10 mm, 15 mm
(0.197 in, 0.394 in, 0.591 in)- Pressure
2 bar, 7 bar
(29 psi, 101.5 psi)- Rod diameter
6 mm, 10 mm, 16 mm
(0 in, 0 in, 1 in)- Ambient temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Component Parts and Materials
1 Zinc-plated steel Nut
2 Brass Bush
3 Steel Spring
4 Steel Piston rod AISI 303
5 Polyurethane Rod seal
6 Nickel plated brass Shape body
7 Zinc-plated steel Locking screw
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Single-acting, Threaded piston rod and No-threaded piston rod.
