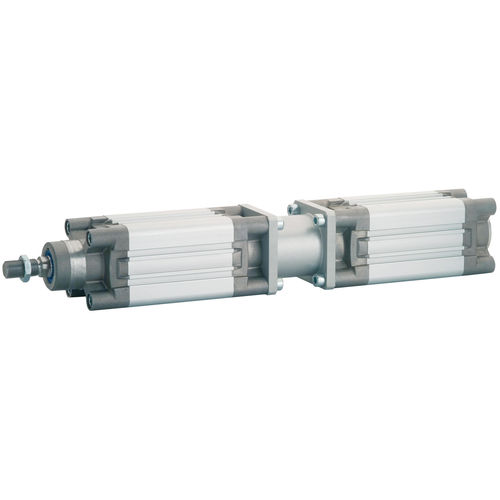

Tandem cylinder XHTpneumaticmagnetic pistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston
- Configuration
- double-acting
- Material
- steel
- Norms
- ISO 15552
- Other characteristics
- tandem
- Bore
Max.: 125 mm
(4.92 in)Min.: 32 mm
(1.26 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 1 bar
(14.5 psi)- Rod diameter
Max.: 125 mm
(5 in)Min.: 32 mm
(1 in)- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Component Parts and Materials
1 Chrome steel C40 piston rod
2 Zinc-plated steel Nut
3 Polyurethane Rod Seal or FKM
4 Aluminium Front cover
5 Polyurethane Cushioning seals or FKM
6 Zinc-plated steel Screw cushioning
7 Aluminium Back cover
8 Anodised aluminium cylinder shape body
9 Zinc-plated steel Screw
10 Sintered bronze Bearing
11 Polyurethane Piston seals or FKM
12 Plastoferrite Magnet
13 Front Aluminium Piston
14 Support Magnet
15 Rear Aluminium Piston
16 O-Ring in NBR or FKM
17 O-Ring in NBR or FKM
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Single acting magnetic or non-magnetic.
Double cushioned acting single or double end
rod, magnetic or non-magnetic.
Tandem.
