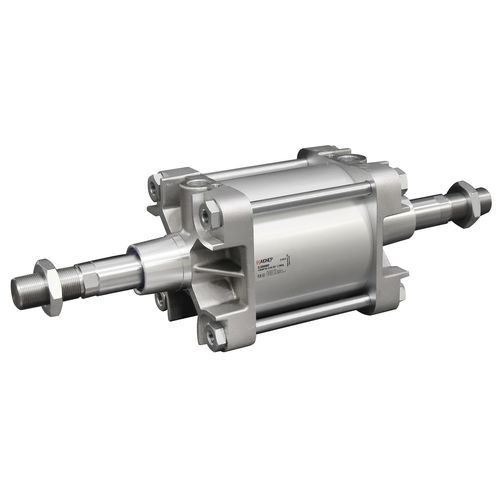

Pneumatic cylinder EL seriesmagnetic pistonwith through roddouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston, with through rod
- Configuration
- double-acting
- Material
- anodized aluminum
- Norms
- ISO
- Other characteristics
- with adjustable cushions
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 25 mm
(0.984 in)- Bore
160 mm, 200 mm, 250 mm, 320 mm
(6.3 in, 7.87 in, 9.84 in, 12.6 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 1 bar
(14.5 psi)- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Component Parts and Materials
1 Rear head Die-casted Sandblasted aluminium
2 Aluminum back piston
3 O-ring NBR or FKM
4 Magnet Bonded ferrite
5 Piston seal in Polyurethane or FKM
6 Piston in Aluminium
7 Tube Anodized aluminium
8 Piston guide in Acetal resin
9 O-ring in NBR o FKM
10 Cushioning screw Galvanized steel
11 Cushioning seal in Polyurethane or FKM
12 Front head Die-casted Sandblasted aluminium
13 Fixing screw Galvanized steel
14 Rod seal in Polyurethane or FKM
15 Rod Chromium plated steel or Stainless steel
16 O-ring in NBR or FKM
17 Bush in Sintered bronze
18 Rod nut Galvanized steel
19 Elastic ring made in steel
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Double acting single or double end rod,
magnetic or non-magnetic, cushioned or
non-cushioned.
