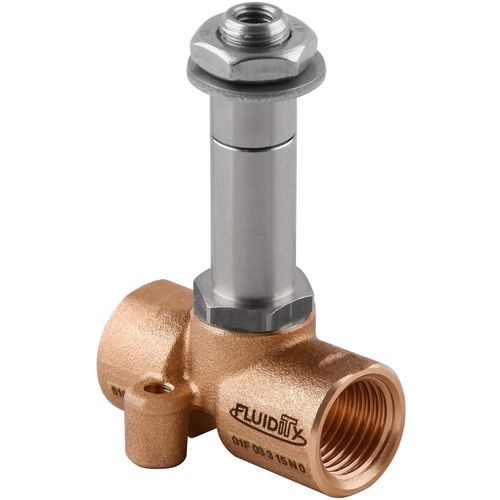

Direct-operated solenoid valve 01F - 3/2 NC
3-wayNCfor water

Direct-operated solenoid valve - 01F - 3/2 NC - AIGNEP - 3-way / NC / for water
Direct-operated solenoid valve - 01F - 3/2 NC - AIGNEP - 3-way / NC / for water
Direct-operated solenoid valve - 01F - 3/2 NC - AIGNEP - 3-way / NC / for water - image - 2
Direct-operated solenoid valve - 01F - 3/2 NC - AIGNEP - 3-way / NC / for water - image - 3
Direct-operated solenoid valve - 01F - 3/2 NC - AIGNEP - 3-way / NC / for water - image - 4
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC
Medium
for water, air, for steam, oil
Body
threaded, brass
DN

0.125 in, 0.25 in

Temperature

Min.: -10 °C
(14 °F)

Max.: 140 °C
(284 °F)

Pressure

Min.: 0 bar
(0 psi)

Max.: 13.5 bar
(195.8 psi)

Description

Component Parts and Materials 1 Body: Brass 2 Seals: NBR - EPDM - FKM 3 Welded armature tube: Stainless steel 4 Fixed and mobile core: Stainless steel 5 Springs: Stainless steel Room temperature with coil class H - 10 °C + 80 °C Operator diameter 10 mm
