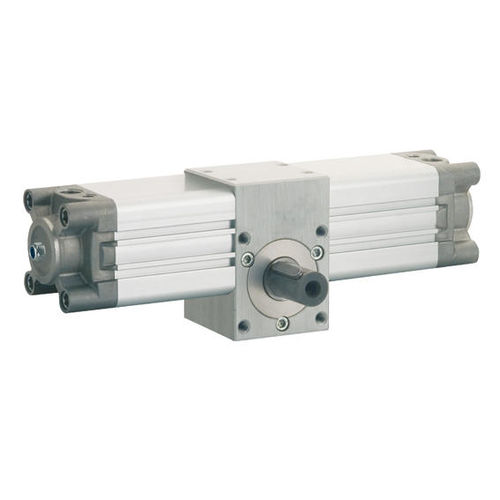

Rotary cylinder XRM seriespneumaticrack-and-piniondouble-acting
Add to favorites
Compare this product
Characteristics
- Movement
- rotary
- Type
- pneumatic
- Technology
- rack-and-pinion
- Configuration
- double-acting
- Bore
Max.: 100 mm
(3.94 in)Min.: 32 mm
(1.26 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 1 bar
(14.5 psi)- Torque
Max.: 26.35 Nm
(19.435 ft.lb)Min.: 1.2 Nm
(0.885 ft.lb)- Rotation angle
90 °, 180 °, 270 °, 360 °
- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Double-acting cushioned and magnetic with male pinion.
Double-acting cushioned and magnetic with female connection.
