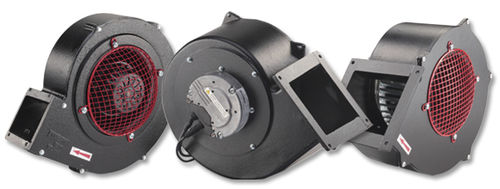

Centrifugal fan QB seriescoolingextractionDC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- cooling, extraction
- Supply voltage
- DC
- Applications
- industrial
- Environmental characteristics
- eco-friendly
- Other characteristics
- compact
- Air flow
Max.: 1,400 m³/h
(49,440.533 ft³/h)Min.: 0 m³/h
(0 ft³/h)
Description
Energy efficient and environmentally friendly fans
ACIs QB EC Range of energy efficient fans are equipped with EC Technology energy-saving motors with electronic control ensuring optimal efficiency.
Key Performance Figures:
Flow rates up to 1400m3/hr (824CFM)
Pressures up to 3.75in.Swg (933Pa)
Intelligent motor driven impellers for closed loop control
Superior operating efficiency up to 85% for single phase motors
Can be directly set-up to respond to heat, pressure and humidity inputs via relevant sensors
Compact and quiet
Long service life due to small heat losses
Easy to control with 0-10V DC or PWM signal
All control and protection electronics are integrated in the motor with easy connection
Typical Applications:
Fume extraction
Electronics cooling
Safety cabinets / laminar flow
Plastic extrusion machines
UV lamp cooling
Light industrial applications
