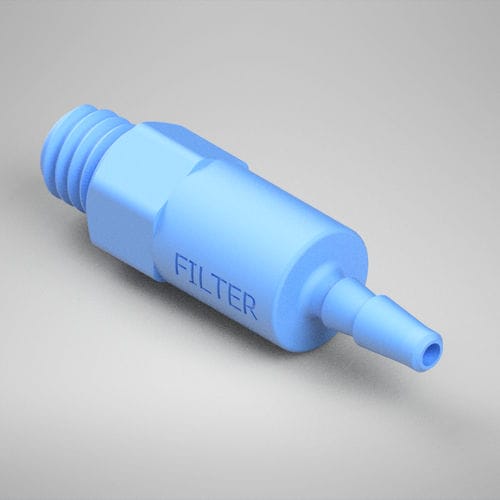

In-line filter F960 series

airliquidwire mesh

Threaded filters protect sensitive devices from system contamination in a pneumatic or liquid circuit. Filters are a flat stainless-steel weave meant for small devices or for larger systems working in tandem with system-wide filtration. There is no flow orientation to the filters, the filtered area and canister volume are equal on both sides of the filter. Air Logic's barbed inline filters are low profile, lightweight and fit into the tightest design envelopes. This filter is well suited to filtering media entering or leaving a critical device. Integrate the threaded filter into a system to create a filtered input or output. Ex. Regulator, Valve, cylinder, or pump. Threaded filters are commonly used to protect against debris generated inside of a system or device. Ex. Teflon tape debris during assembly, broken o-rings from valves, machining chips from threads. Connection Type Barbed Wetted Material(s) Polysulfone (PSU) Stainless Steel (SS) Installation Method Push-In Connection Size 10-32 Threads RoHS 3 (Restriction of Hazardous Substances) Compliant Yes REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant Yes Additional Information Threaded connections are a convenient way to connect in a variety of applications. This product combines well with Air Logic's fitting product line for application specific requirements like swivel capability, and replaceable filter applications.
