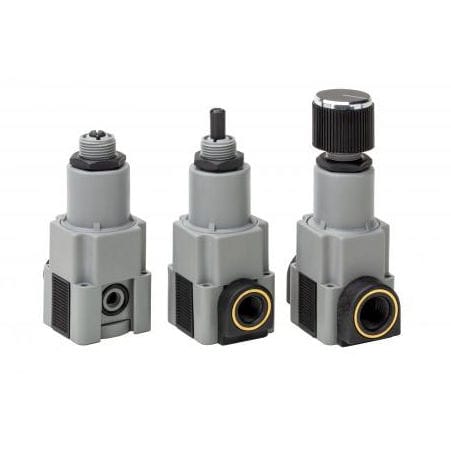

Membrane pressure regulator NR4100 seriessingle-stagestainless steelnylon
Add to favorites
Compare this product
Characteristics
- Technology
- membrane
- Number of stages
- single-stage
- Material
- stainless steel, nylon, elastomeric
- Applications
- industrial, pneumatic
- Other characteristics
- miniature, modular, non-relieving
- Pressure
Max.: 100 psi
Min.: 0.5 psi
- Orifice diameter
Max.: 0.31 in
Min.: 0.125 in
Description
The Modular Subminiature Non-Relieving Regulator is configured for accurate regulations of pressure without needing a pressure bleed. Setpoint creep and over-shoot are minimized by a combination of elastomeric seat and go high seat force. In an open system, Non-Relieving Regulator will operate without the risk of set point creep. In a closet system, Non- Relieving Regulator should only be used in combination with secondary relief.
The Unique Modular Dovetail design allows the regulator to be configured individually or assembled into a modular combination of pneumatic components.
Features:
Configurable Ports
Excellent Repeatability
Miniature Size
Non-Rising Stem with 20 Turns
Pressure Compensated Design
Zero Supply Consumption
Elastomeric Seat
High Seat Force
