Air filtration system M66

bagHEPA

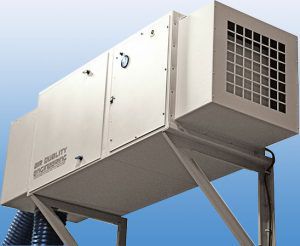

The M66 R&L media air cleaner is a self-contained air filtration media system designed for general background or ducted for source capture applications. Optional accessories are available for the M66 R&L model air filtration media including backward inclined blower packages up to 5 hp for additional static pressure capacity, silencer, overhead mechanical arms with halogen lighted hoods, HEPA filter options and more. The M66 is a self-contained media air cleaning system designed for general background or ducted for source capture applications. The M66 can be ordered with three-stage filtration which will effectively remove a broad range of airborne contaminants including fine dusts, smoke, soot, vapors, mist, VOC’s and more at a rate of up to 3200 cfm. M66 R&L FEATURES & SPECIFICATIONS DIMENSIONS: : 27 1/8″H x 26 1/2″W x 56″L WEIGHT: : 250 lbs. installed 297 lbs. shipping weight CABINET: : 16-gauge welded steel cabinet with baked enamel textured coated finish. PRIMARY FILTER: : 24 x 24 x 22, 8 pocket, 66 sq. ft. of synthetic media. Optional filters can increase filter media to 200 sq. ft. AMBIENT TEMP: : 175° Maximum MOUNTING: : Standing or hanging cabinet with horizontal airflow. Ceiling mount brackets – standard. PREFILTER: : 30-35% efficient pleated filters, 24 x 24 x 4. Filter media is a cotton and synthetic blend. Total prefilter media area is 29.5 ft. MOTOR: : 1 HP sealed ball bearings and thermally protected. Adjustable motor sheave allows for field adjustments to the rated airflow. BLOWER: : Forward curved, ball bearing, belt driven centrifugal blower. This blower is capable of moving 4400 cfm free air.
