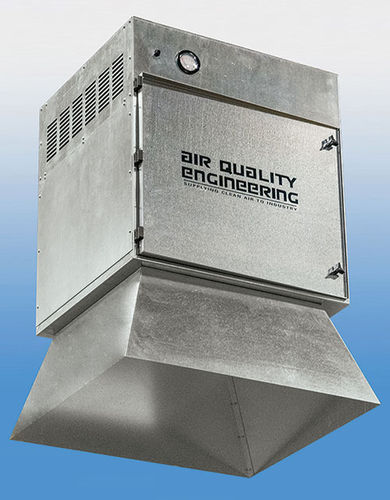

Bag filtration system M1600

air

The M1600 Industrial Shop Air Cleaner System is designed for indoor industrial settings and provides increased comfort as well as efficient air filtration for your employees. Unlike traditional fans that move air from person to person, the M1600 creates a more defined pattern of recirculating filtered air that reduces cross-contamination between workstations. With this unit you address air quality preparedness enhancement needs, various industrial process contamination control needs, as well as the all important employee comfort need all in one package for each area or zone of concern. The M1600 features: • Fan cooling within manufacturing settings • Multi-directional vertical airflow pattern • High efficiency filtration to capture airborne particles SPECIFICATIONS DIMENSIONS: : 27.15″ [690mm] W x 25″ [635mm] L x 29.38″ [746mm] tall Optional 12″ tall inlet hood WEIGHT: : 145lbs [66kg] installed weight (add 20lbs [9kg] for optional hood) CABINET: : 16-gauge galvanized steel cabinet STANDARD BLOWER: : Backward curved, vibration-free, motorized impeller at 1600cfm @ 0″ wg [2718M3/H @ 0 PA], and 1000cfm @ 3″ wg [1700M3/H @ 747Pa]. SPEED CONTROL: : Solid-State Variable Speed AC Motor Control POWER INPUT: : 1.08 kW motor, 120V, 60 Hz, single phase, 9.4 amps or 1.08 kW motor, 230V, 60Hz, single phase, 4.7 amps OPTIONAL: : Dirty Filter Gauge – Factory installed pressure gauge designed to determine filter replacement cycle. PREFILTER: : Prefilter, MERV 10 24x24x4 Pleated. PRIMARY FILTER: : Filter, MERV 14, 24X24X12, Extended Surface, 200 Sq. FT. Media Area (95% ASHRAE)
