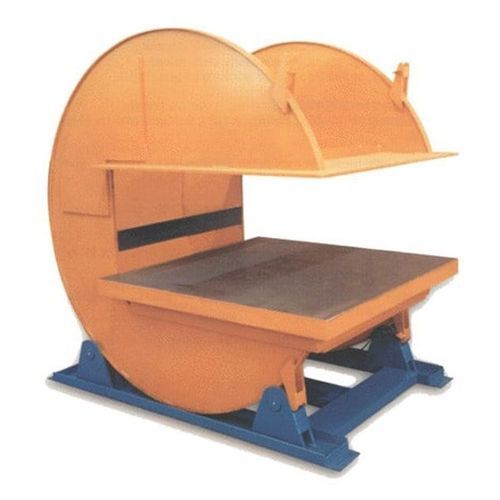

Hydraulic tipping station UI series

piles

Say Hello to ATI’s Original Pallet Flipper! Smooth, Precision-Positioning of Large, Heavy Loads • Using the Upender Inverter, loads can be inverted 180° with 90° and 180° rotation. • The rotation is electro-mechanically operated. Driven by a powered gearbox for reduced speed Comes standard with a 230/460V 3-phase power system (upgrades available). •Loads can enter and exit from the front or either side. Larger loads can protrude or overhand on either side if necessary. •Units available in 2000, 4000, 6000, & 10,000 lb. capacities. Mini Upender Inverter available in 250 pounds capacities Custom units available up to 50,000 pounds! •A variety of platform sizes available: 48″ wide and 48″ deep with a 50″ throat opening. 72″ wide and 48″ deep with a 52″ throat opening. 96″ wide and 54″ deep with a 66″ throat opening. •Optimize with roller conveyor. Guide loads automatically, then gently clamp together with the hydraulically -operated scissor platform. Conveyor height reduces throat opening from 4″ to 6″, depending on conveyor capacity requirement.
