Air blower VS seriessingle-stageweldingheating
Add to favorites
Compare this product
Characteristics
- Type
- air
- Number of stages
- single-stage
- Applications
- for ventilation, heating, welding
- Other characteristics
- antistatic
- Flow
1,116 m³/h, 2,088 m³/h, 5,299 m³/h
(39,411.168 ft³/h, 73,737.024 ft³/h, 187,132.419 ft³/h)- Operating pressure
4 bar
(58.015 psi)- Length
350 mm, 460 mm, 500 mm
(13.78 in, 18.11 in, 19.69 in)- Depth
150 mm, 200 mm, 300 mm
(5.9 in, 7.9 in, 11.8 in)
Description
Rental and sale of ventilation systems and heating equipment for full-scale shutdowns
Conforms for Ex zones 0,1,2 21 and 22

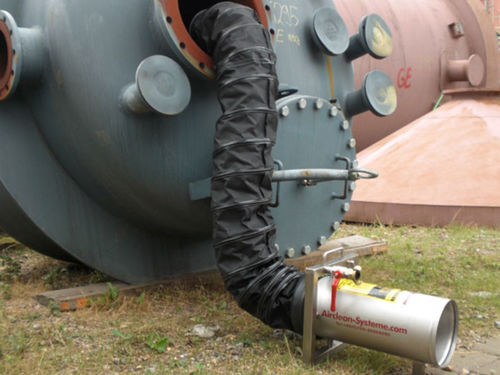

Compressed-air operated tank venting system for external use. These Venturi systems are perfectly suited for blast protected venting of rooms, storage tanks, processing columns and reactors. The Venturi systems also represent an ideal solution for extracting vapour during welding in closed rooms or storage tanks. The equipment is made of stainless steel (1.43.01) and can be used for operating pressures in excess of 2.5 bars.
Since they include no moving or rotating parts, these Venturi systems are maintenance and fault-free.
extraction hoses
antis hoses in all diameters and lengths.
Auer exhaust
Conforms for Ex zones 0,1,2 21 and 22
Auer exhaust for use with compressed air or saturated vapour
• Shockproof, antistatic Mixer from Polyetheylen
• Cylindrical mixing chamber for higher Mixing instalments
• With earthing cable and manometer on request
• No flexible parts, low maintenance effort
