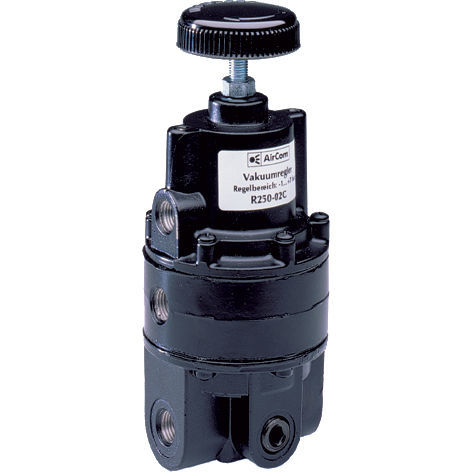

Compressed air pressure regulator R250-2 seriesdiaphragmmulti-stagestainless steel
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- diaphragm
- Number of stages
- multi-stage
- Material
- stainless steel, aluminium, elastomer, NBR
- Applications
- precision, for vacuum
- Pressure
Min.: -1 bar
(-14.5 psi)Max.: 17 bar
(246.56 psi)- Flow
70 l/min, 900 l/min
(18.49 us gal/min, 237.75 us gal/min)- Orifice diameter
0.25 in
- Temperature
Min.: -40 °C
(-40 °F)Max.: 90 °C
(194 °F)
Description
Diaphragm vacuum regulator ensuring high precision in both vacuum and positive pressure range.
Media: compressed air or non-corrosive gases
Supply_pressure: max. 17 bar
Accuracy: response sensitivity = < 2 mbar
Adjustment: by handwheel with locknut
Air_consumption: max. 2.8 l/min in positive pressure range
Gauge_port: G1/4 on both sides of the body, screw plugs supplied
Mounting_position: any
Body: aluminium die-cast
Inner_valve: stainless steel and brass
Elastomer: NBR/Buna-N
