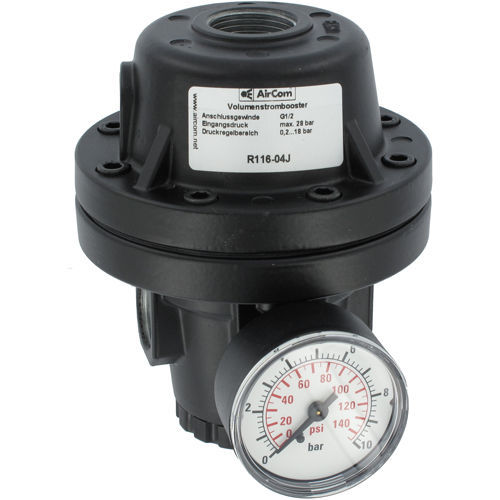

Compressed air pressure regulator R116 seriesmembranesingle-stagezinc
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- zinc, nylon, elastomer, NBR
- Applications
- industrial
- Other characteristics
- pilote-operated
- Pressure
Max.: 28 bar
(406.11 psi)Min.: 0.2 bar
(2.9 psi)- Flow
Max.: 42,000 l/min
(11,095.23 us gal/min)Min.: 4,500 l/min
(1,188.77 us gal/min)- Orifice diameter
Max.: 5.5 in
Min.: 0.25 in
- Temperature
Max.: 70 °C
(158 °F)Min.: -18 °C
(-0.4 °F)
Description
Ideal for continuous high-capacity requirements where reduced pressure
must be held constant over wide variations in flow.
The booster is equipped with a diaphragm.
Transmission ratio 1 to 1 (pilot pressure to outlet pressure).
Media: compressed air or non-corrosive gases
Ports: inlet / outlet = see chart
exhaust:
G1/2 (up to overall size G1/2),
G3/4 (from size G3/4 on)
gauge_P2: G1/4
gauge_P1: G1/8 (from size G3/4 on)
Temperature_range: -18 °C to 70 °C / 0 °F to 158 °F
Body: zinc die-cast
Inner_valve: brass
Elastomer: NBR/Buna-N
Bottom_screw: nylon, glass fiber reinforce, ... G1 1/2 and G2
