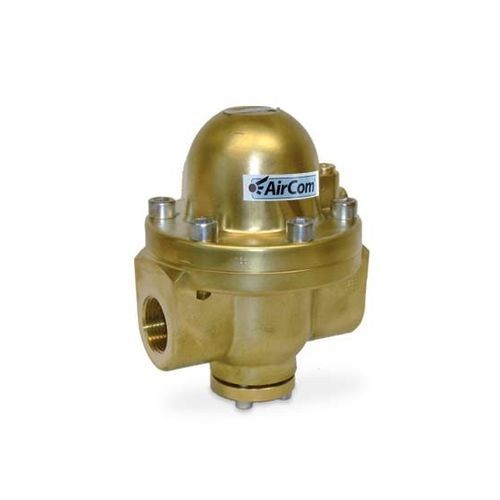

Compressed air pressure regulator RLM series

for inert gasesdome-loadedsingle-stage

The pilot pressure regulator/booster regulates the outlet pressure through a signal pressure at ratio of 1 to 1. Functioning as a pressure regulator the pilot pressure may either be internally inducted from the inlet pressure or externally. The dome chamber is closed by a needle valve. Functioning as a volume booster the dome is controlled by a proportional pressure regulator or a pilot pressure regulator. Media: compressed air, non-corrosive gases or liquids Pilot_port: G1/4 Accuracy: at supply pressure variation of 10 bar = 0.1 bar pressure deviation at temperature variation of 3 °C / K = 1% pressure deviation at internal pilot pressure Body: brass or stainless steel 1.4571 Inner_valve: brass or stainless steel 1.4571 Elastomer: FKM, optionally EPDM
